LOCAL TRANSMITTER INFO

In Winchester television signals are covered by Two main transmitters .
ROWRIDGE AND HANNINGTON

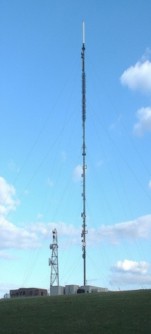

ROWRIDGE is Located on The Isle Of Wight SZ 447865 NGR       500 KW ERP
aerial group A channels for analogue are .
VISION    SOUND      CHANNELS
551.25      557.25       31 for BBC 1
495.25      501.25       24 for BBC 2
519.25      525.25       27 for ITV
471.25      477.25       21 for C4
575.25      581.25       34 for C5
see below

HANNINGTON is Located near Newbury                                    250 KW ERP
SU 527568 NGR   aerial group E or wide band
channels for analogue are
VISION      SOUND      CHANNELS
615.25        621.25       39 for BBC 1
663.25        669.25       45 for BBC 2
639.25        645.25       42 for ITV
831.25        837.25       66 for C4
                                  35 for C5
NO CHANNEL 5 IS AVAILABLE FROM THE HANNINGTON TRANSMITTER IN THE WINCHESTER AREA IN ANALOGUE

CHANNEL 5   TRANSMITTED FROM FAWLEY
AT A MUCH LOWER SIGNAL LEVEL COMPARED TO BBC AND ITV ON ROWRIDGE AND IS ONLY AVAILABLE AT CERTAIN LOCATIONS AT A REDUCED SIGNAL LEVEL

DIGITAL SIGNALS ARE TRANSMITTED FROM BOTH TRANSMITTERS

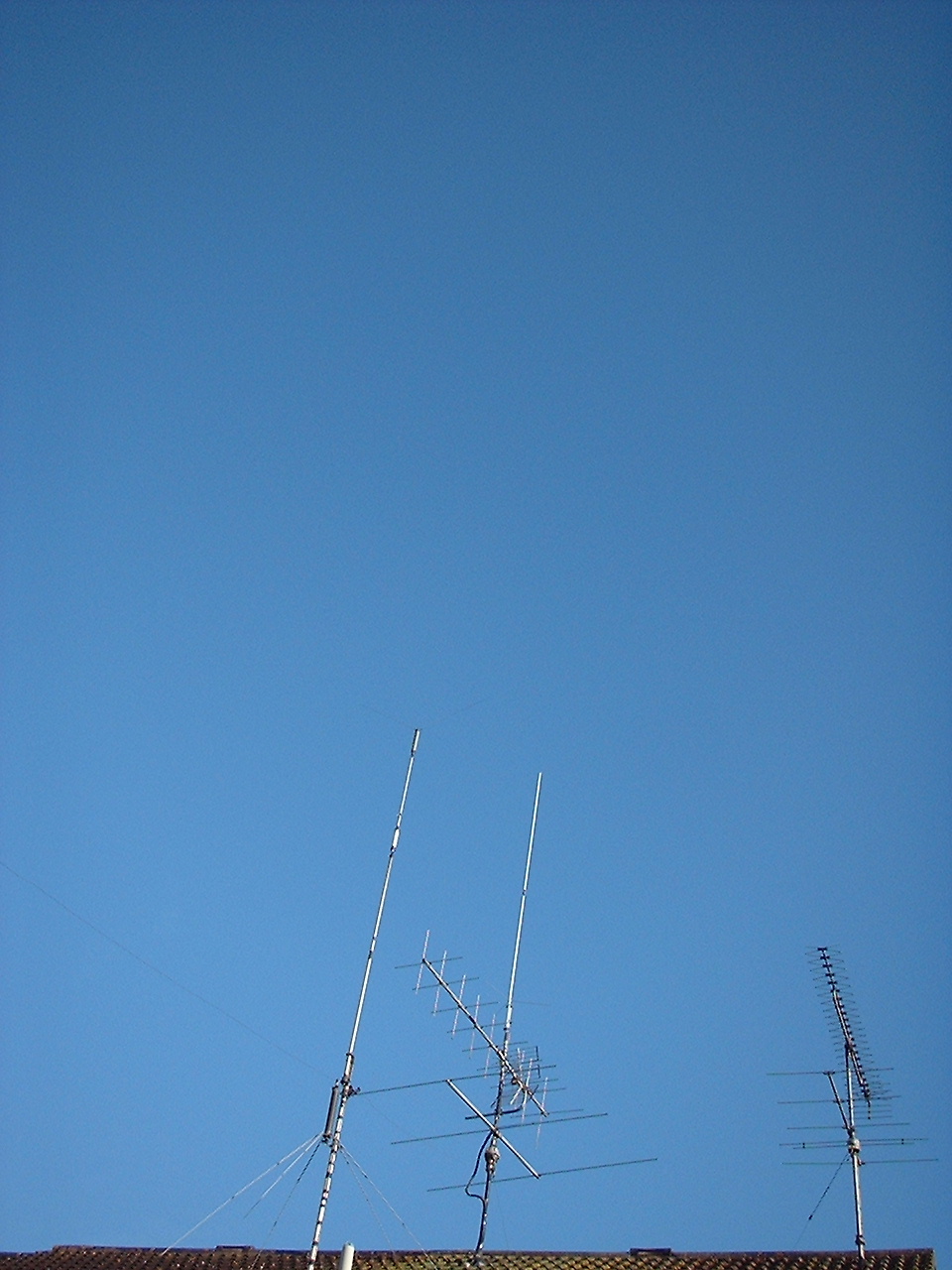

We advise your aerial must be a high gain type & CAI APPROVED to receive all the digital Signals reliably from any of the local transmitters.
